Product Description

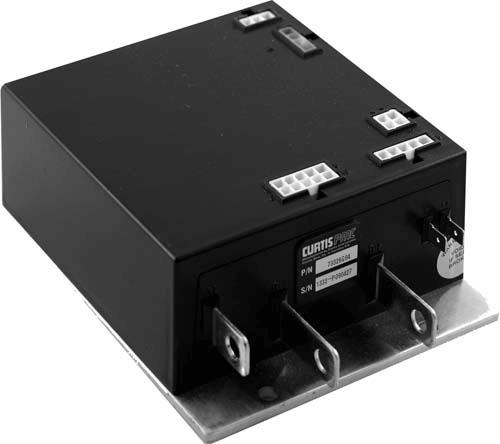

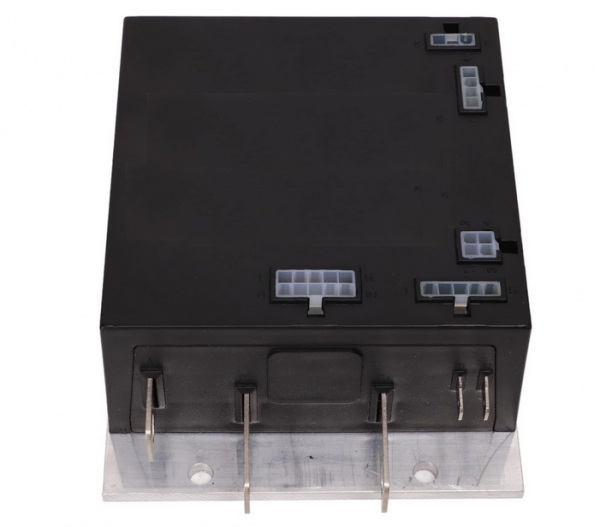

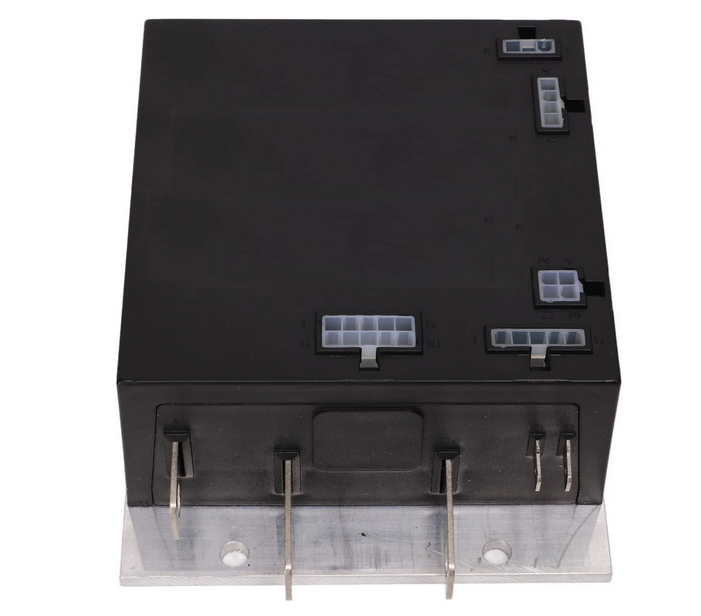

Curtis (1206) 350 amp, 36 volt controller with 4 buss bars is pre-set for E-Z-GO ITS throttle. For maximum performance, safety and durability 4 gauge cables throughout the car, heavy-duty solenoid and heavy-duty F&R switch are required.
Common cause of the defect is that the cables between the motor and control unit rub against a sharp edge of the battery holder/chassis, damaging the insulation. This results in a short circuit. First eliminate the cause and check all cables, including smaller cables. Replace damaged cables and provide extra insulation for the future, e.g. cut open a water hose and wrap it around the cable.
Specifications:
For use with E-Z-GO TXT (Years 2000-2009)
350 Amp
Throttle Input: ITS
Tech Tip: Speed Chips are not compatible with this controller
OEM cross reference:
- 73326-G06
- 73326G06
- 73326-G07
- 1206MX-1115
- 73326G02
- 73326G05
- 73326G07
- 73326G04
- 73326-G01
- 73326G01
- 609083
- 347
